چیلر
برای دانلود کاتالوگ چیلر تراکمی کلیک کنید.
آب خنک
اسکرال
WSH-XSC 65D-180F
WATER COOLED CHILLERS OF 195 TO 560 kW.
SPINCHILLER represents the very latest step in the evolution of chiller units. Designed specifically to optimize efficiency at partial loads, units of the SPINCHILLER series offer lower energy consumption — under normal operating conditions — than any other chiller of similar rated capacity.
اسکرال
Nominal cooling capacity from 325 kW to 782 kW
- Independent refrigeration circuits with twin screw compressor R-134a
- Eurovent efficiency Class A
- Modulating capacity control (stepless) up to 25% of the load
- Leaving temperature down to -12°C
- Temperature leaving the condenser up to +65°C
- Heat pump with reversibility on the water circuit
- Total / partial recovery of the condensing heat
هوا خنک
اسکرال

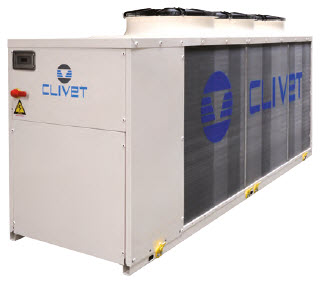

Water chiller
WSAT-XEE: cooling only
WSAN-XEE: reversible heat pump
Air cooled
Outdoor installation
Capacity from 90 to 216 kW
ELFOEnergy Large2 water chillers and heat pumps provide the highest seasonal efficiency. They’re designed to be installed outdoor and feature uneven scroll compressors mounted in the same circuit, electronic expansion valves and high efficiency plate type evaporators.
ELFOEnergy Large2 shows an unmatched seasonal efficiency ESEER and is available in two versions: EXCELLENCE and PREMIUM. The standard version EXCELLENCE offers the highest efficiency both at full and at part load. Also the PREMIUM version offers high efficiency at part load but favour also the compact dimensions being therefore extremely competitive.

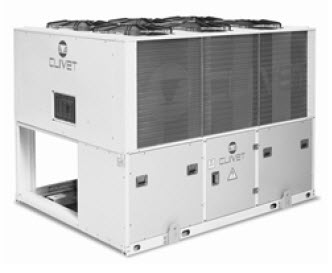

SPINchiller3
Nominal cooling capacity from 268 kW to 678 kW
Technical
Bulletin
High efficiency air-cooled liquid chiller
air-cooled for outdoor installation
WSAT-XSC3 90.4-240.4 RANGE
BT14H002IGB-00
Clivet is taking part in the EUROVENT certification programme up to 600 kW. The
products concerned appear in the certified products list of the EUROVENT www.
eurovent-certification.com site.
R-410A multiscroll technology
Two independent refrigeration circuit
Eurovent Class C / Compact version
اسکرال

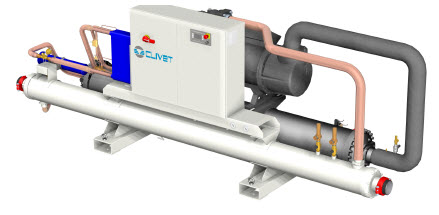

MDE-3 R-134a
New series of water chillers with remote condenser
Large capacity range from 440 to 1390 kW with two screw compressors
Capacity control with continuous modulation (Stepless)
Specifically designed evaporator exchangers
High efficiency refrigerant circuit with economizer
Smart and up dated electronic control

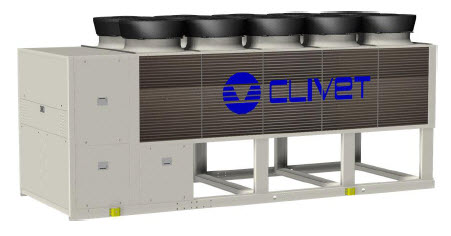

SCREWLine³
Technical
Bulletin
High efficiency air cooled water chiller for outdoor installation
Clivet is taking part in the EUROVENT certification programme up to 1.500 kW. The products
concerned appear in the certified products list of the EUROVENT www.eurovent-certification.com
site.
BT14D018GB-00_PRELIMINARY 01
WDAT-SL3 200.2 – 580.2 RANGE
Nominal cooling capacity from 466 kW to 1423 kW
R-134a double screw compressorsTwo independent refrigeration circuits
Modulating capacity control (stepless) up to 15% of the load
Chilled water down to -12°C
Total / partial recovery of the condensing heat
EXCELLENCE version
Eurovent Class A / Up to 52°C of outdoor air temperature
PREMIUM version
Eurovent Class C / Compact version

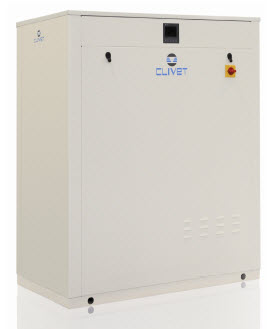

مینی چیلر
ELFOEnergy Extended Inverter
AIR COOLED INVERTER HEAT PUMP
FOR OUTDOOR INSTALLATION
HIGH SEASONAL EFFICIENCY
EUROVENT CLASS A
DC INVERTER TECHNOLOGY
MAXIMUM SILENT OPERATION
COMPACT DIMENSIONS
سیستمهای سرمایشی دیتا سنتر

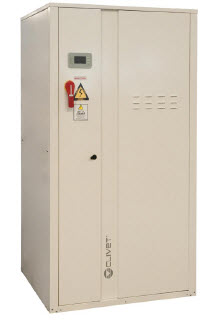

Chilled Water Type
Close control air-conditioning unit With chilled water Indoor installation
Capacity from 25,5 to 119,1 kW
UCP-CW Clivet air conditioners are energy efficient modular units, direct expansion water cooled condensing units complete with precision adjustment.
They are specialised in climate control for technological areas with a
high thermal load and continuous cycle operation, such as Data Centres, Telecommunication stations, Laboratories and Processing sites.
The UCP-CW technological solutions include electronically controlled ventilated sections,heat exchangers to high surface and continuous control of capacity.
They contribute to reducing operational costs and the environmental impact of the site, thanks to the efficient use of the available energy and simplification of maintenance operations.
Direct Expansion Type
- Wide range of options
- Low noise and extremely low noise versions
- Special options for ME, CASR and Close
- Control series
کندانسینگ یونیت
هوا خنک

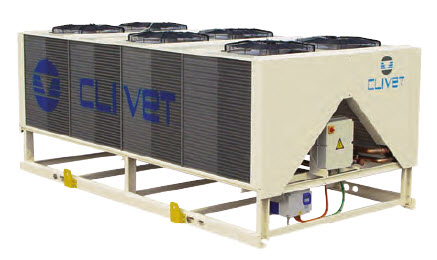

The CEM remote condensers may be combined with all the remote condenser
liquid chillers and are made so as to occupy the least space possible.
Remote condensation means that noise can be transferred to where it causes
least disturbance, thereby achieving a highly appreciable working wellbeing.
They are available in various soundproofing configurations and with various
exchanger coils for best adaptation to their surroundings.
Use of the condensation control gives the CEM remote condensers, latent load
permitting, the extra possibility of obtaining considerably lower noise levels
than a packaged chiller.
Great care has been taken over all the finishes to ensure maximum resistance
to weathering even under extreme conditions of use.

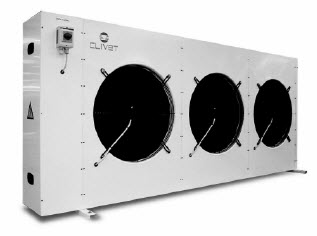

CE-X
REMOTE AIR COOLED CONDENSER
FOR OUTDOOR INSTALLATION
The CE-X remote air-cooled condensers can be matched to ME-X and CASR-X Clivet units for indoor
installation, to UCP-DX Data Center units and they can also be connected to other motor-evaporating
units.
They are available in two acoustic configurations, Standard (ST) and Low Noise (LN), to fulfil also the
most severe project requirements respecting the sound levels required.
They use axial fans extremely silent and with high heat exchange efficiencies, housed inside
aerodynamic conveyors. Thanks to optional devices for the fan speed control, phase cutting or
ECOBREEZE type, is possible to increase the energy savings of the entire system, to optimize the
combined unit operation and to further increase the silence.
All units respect the high quality standards that Clivet guarantees with severe tests during the entire
production cycle.
MSAT-SC 65D-180F
AIR COOLED CONDENSING UNIT FOR OUTDOOR INSTALLATION
SPINCHILLER represents the very latest step in the evolution
of chiller units.Designed specifically to optimize efficiency at
partial loads, units of the SPINCHILLER series offer lower
energy consumption — under normal operating conditions —
than any other chiller of similar rated capacity.
آب خنک
MCH
R-407C
WATER COOLED CONDENSING UNIT FOR
INDOOR INSTALLATION
The MCH units are groups of water cooled condensers, which allow the realization of “SPLIT SYSTEM” plants, as they have been
destined for connection to the “Split” type air handling units. They can be combined to our terminal units; CED – CEI – CED-V series. The
reduced dimensions allow the installation in lack of clearance.
